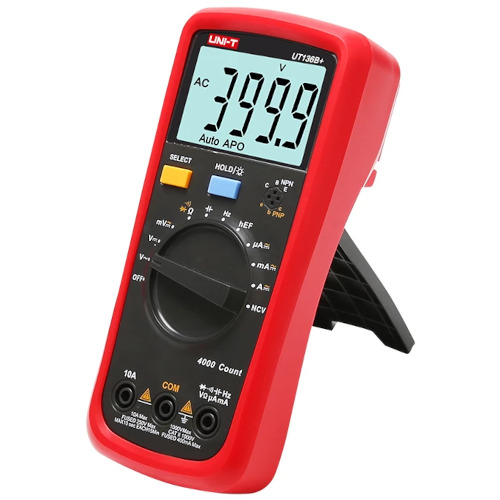

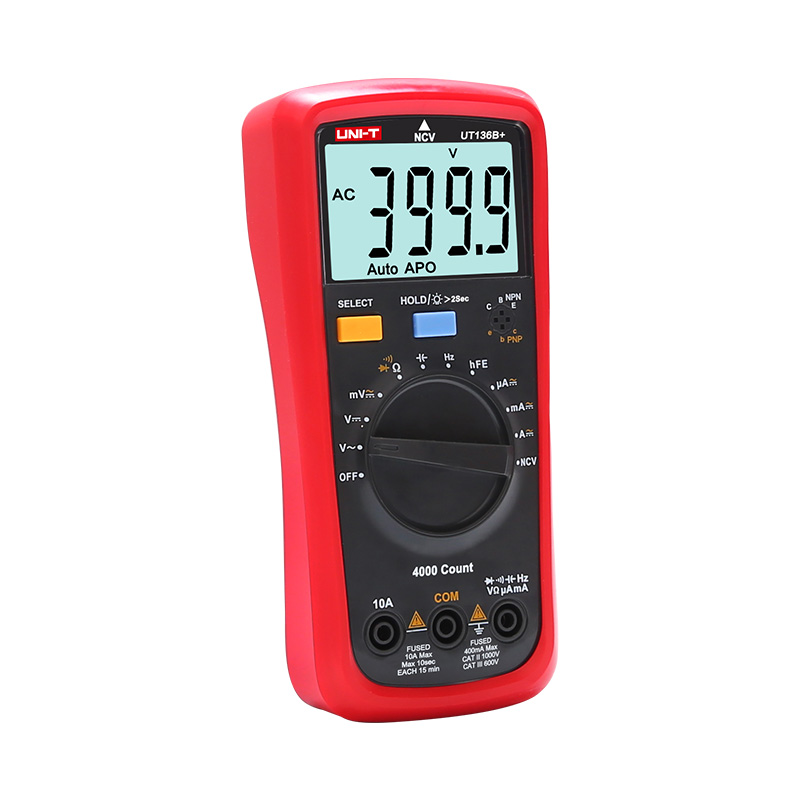

UNI-T UT136B+ Digital Multimeter AC-DC Resistance Frequency Auto Range Meter

Features:

• Measures up to 1000V and 10A AC/DC voltage and current
• Equipped with 3mm protective sleeve; 2 meters drop proof
• Large LCD dual display; up to 4 times/s refresh rate
• Full range protection: can endure up to 1kV over-voltage shock; overload alarm
• Quick response rate
• Low power consumption and auto power-saving function; long battery service life (>500hrs)

Specifications:

Specifications Range Best Accuracy

• DC voltage (V): 400mV/4V/40V/400V/1000V ±(0.5%＋2)
• AC voltage (V): 400mV/4V/40V/400V/1000V ±(0.7%＋3)
• DC current (A): 400uA/4000uA/40mA/400mA/4A/10A±(1.0% 3)
• AC current (A): 400uA/4000uA/40mA/400mA/4A/10A±(1.5% 5)
• Resistance (Ω): 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(0.8% 2)
• Capacitance (F):4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF ±10%
• Frequency: 400Hz ~ 40MHz ±(0.1% 4)
• Max display: 3999
• Auto range:√
• NCV:　√
• Diode/Transistor:√
• Backlight:　√
• Overload alarm:√
• Low battery indication: √
• Auto power off:　√
• LCD size: 60mm x 38mm
• Protective: sleeve3.0mm√
• Safety rating: CAT II 1000V√
